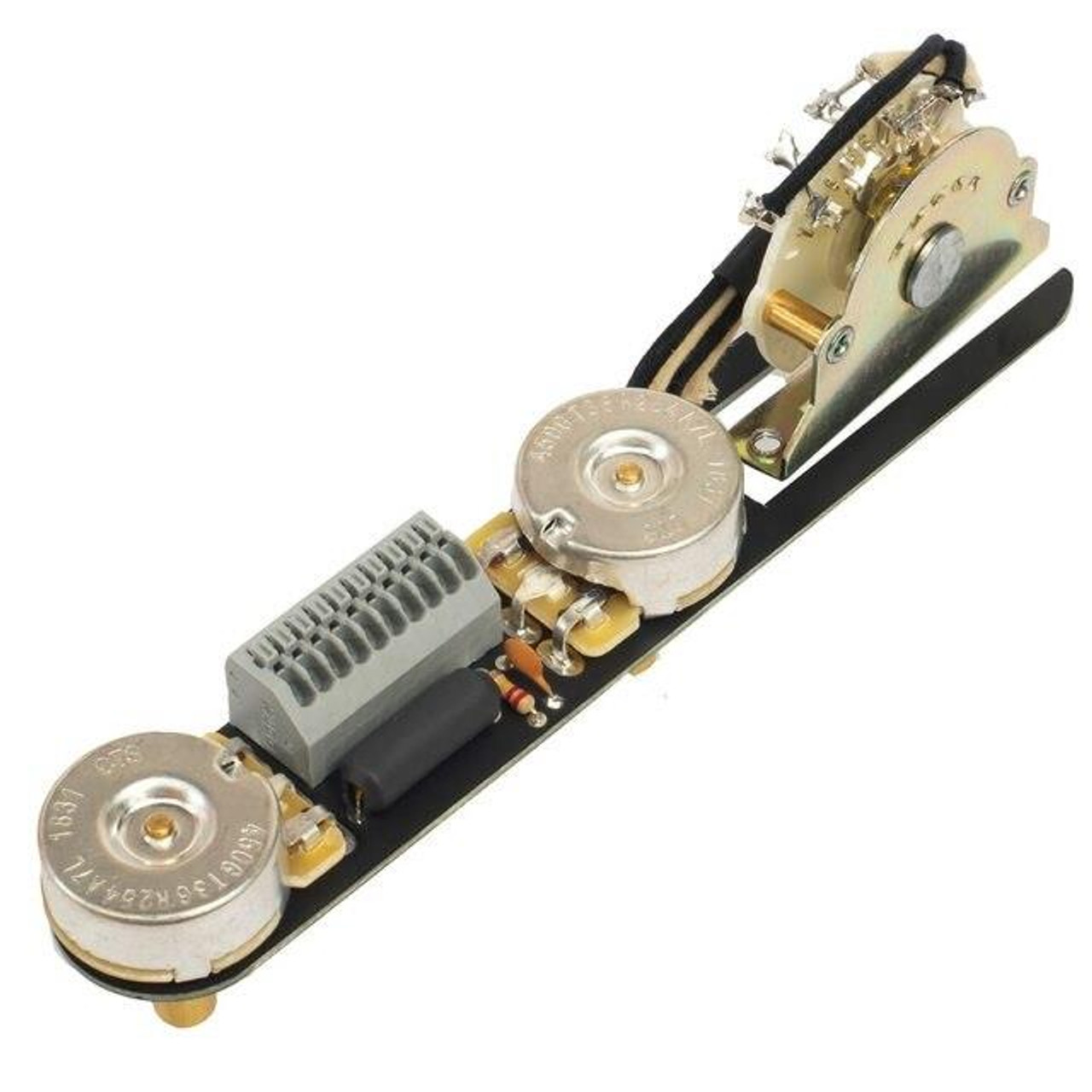

ObsidianWire 3-Way for Tele Loaded Control Plate - chrome
This setup includes a high quality Tele control plate, complete with a set of Obsidian® Pro-Wired™ Electronics and a high quality chrome knobs.
The ObsidianWire Traditional Vintage harness for Telecaster preserves the legacy of the original work horse, with a few tweaks in quality and design to improve the sound and play-ability. Best of all, these are super easy to install, and allow for unlimited solder-less pickup changes with ObsidianWire Plug, Play and Enjoy connectors.
The Traditional Vintage harness follows the same tried and true formula of the original telecaster with a three way switch, master volume, and master tone control plus the addition of premium selected and hand matched components for greater clarity and control over your tone.
To make your tone crystal clear at lower volumes we also include an ObsidianWire Custom Spec Treble Bleed Mod. This prevents tone 'muddiness' at low volumes by allowing high frequencies to pass along a separate path to your amp, rather than being stopped short by the increasing resistance at the volume control.
ObsidianWire Pro-Wired Electronics use the world’s best craftsmanship and components:
• 2 x ObsidianWire Custom Select Pots (Crafted by CTS) 250k (+/-6%) (Matched to +/-2%) SOLID SHAFT
• 1 x Genuine Oak Grigsby 3-Way Switch
• 1 x Genuine Switchcraft J11 Mono Output jack
• 1 x ObsidianWire Custom Select 150 Series Polyester Film Capacitor (0.047 or 0.022uf) (Hand Tested to +/-10%)
• 1 x ObsidianWire Premium Selected Volume Mod / Treble Bleed - Improved Volume Taper & Clarity
• 1 x Pre Printed & Easy to Follow Wiring Diagram
Compatibility:
ObsidianWire Pro-Wired Electronics for Telecaster, are designed to be a direct fit for American and Mexican series Fender® Telecasters. They can also be used to upgrade Japanese Fender & Squier guitars with some adjustments. In the least, you will need a new genuine Fender USA control plate and new 1/4" knobs to fit the higher grade electronics. We cannot guarantee that these will fit any other guitar.
BUILT TO FIT
- Fits: Fender® Telecaster® - Right Hand Guitar Only
- Fits: Squier® Telecaster®
- Note: Right Hand Guitar Only // Lefty will work but the volume and tone controls will work with an opposite rotation
- Pickups: Depends on wiring Model
MAY FIT
- Other Telecaster style guitars. Check specs below
- Mounting screw hole spacing = 150mm
- Minimum Cavity Length = 138mm
- Minimum Cavity Width = 24mm
- Minimum Cavity Depth = 35mm
DOES NOT FIT
Does NOT Fit: Thinline Telecaster
