Voodoo Lab Dingbat Medium Pedalboard Power Package w/ Pedal Power 2 Plus

$299.99
Current stock: 1

The Voodoo Lab Dingbat Medium Pedalboard Power Package w/ Pedal Power 2 Plus. FREE shipping in the USA!

Due to dealer agreements, we're unable to ship this item outside of the USA. Please click here for more details.

Overview
The innovative patent pending design of a Voodoo Lab® Dingbat pedalboard delivers a rugged, lightweight platform for organizing your pedals and keeping cables neatly tucked away and out of view. Crafted from superior American 6061-T6 aircraft-grade aluminum, each pedalboard is made in Sonoma County, California and includes a tour ready gig bag.

At 22" x 13 1/2", the medium Dingbat is ideal for assembling a typical size board with room for 6 to 10 effects. Hook-and-loop tape is provided to attach pedals, also zip ties and 4-way tie mounts to secure cabling underneath.

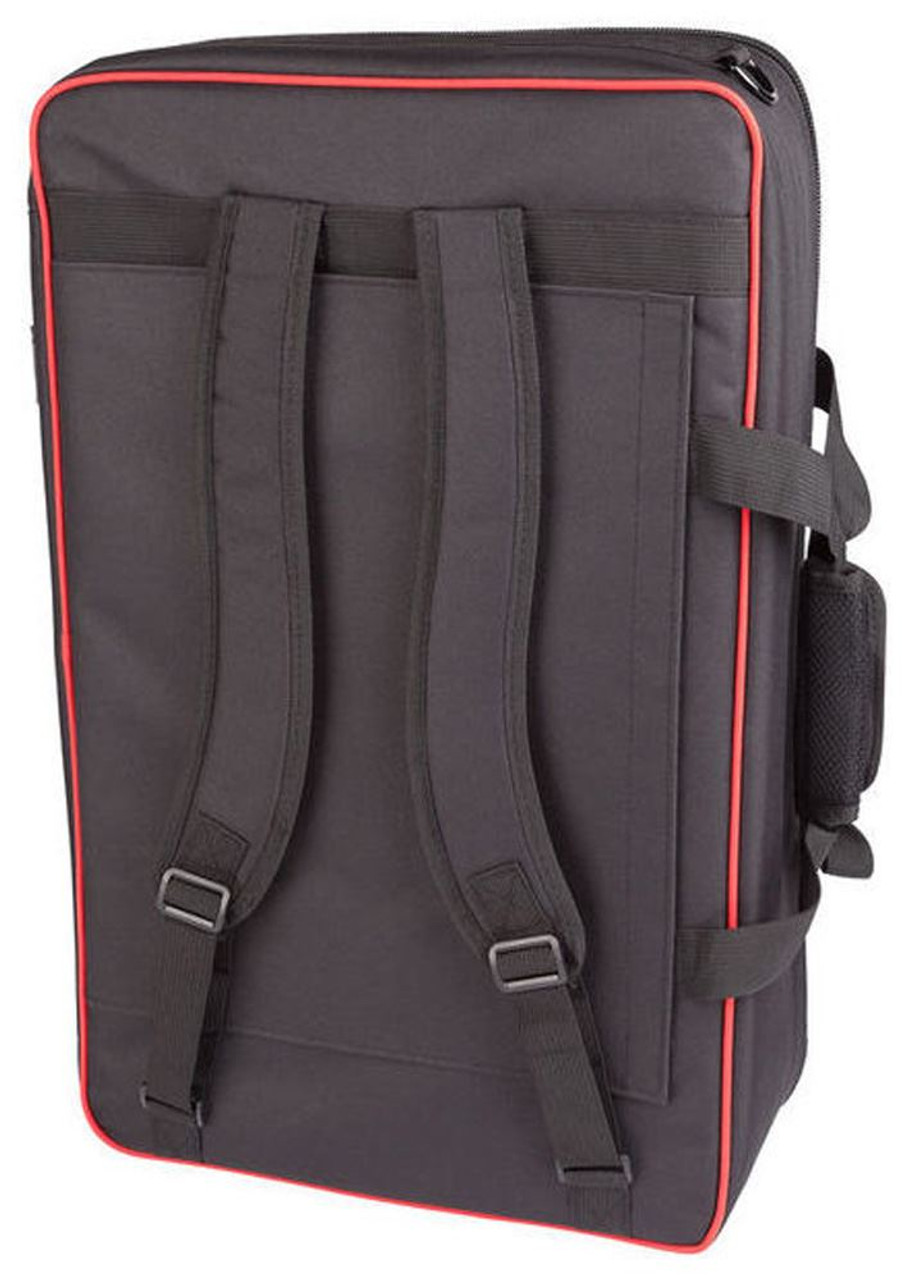

Gig Bag
Each Dingbat pedalboard includes a heavy-duty tour grade padded gig bag that features premium YKK zipper hardware and stowable backpack straps for hands-free transportation.

Power Supply
Designed for seamless integration with industry-standard Voodoo Lab Pedal Power®, installing power supplies with included mounting hardware is quick and easy using only a screwdriver. If additional power is needed, Dingbat Medium features a dedicated position for a second Pedal Power that can be quickly installed with optional mounting brackets.

Power Packages
Dingbat Power Packages offer the convenience of a factory installed Voodoo Lab power supply. The Dingbat Medium is available with either an 8-output Pedal Power 2 Plus, an 8-output Pedal Power 4x4 (includes 4 high-current capable outputs), or a 12-output Pedal Power MONDO. All Voodoo Lab power supplies are made in the U.S.A., feature completely isolated outputs, and include power cables.

Dingbat Medium Features

  • Lightweight American 6061-T6 aircraft-grade Aluminum chassis
  • Pedalboard surface size: 22" x 13.5" (559mm x 343mm)
  • Mounting brackets for easy installation of Voodoo Lab Pedal Power power supply
  • Power Packages Only: Factory-installed Voodoo Lab Pedal Power with power cables
  • Adhesive-backed hook-and-loop pedal mounting fasteners
  • UV-resistant cable ties and 4-way tie mounts
  • Professional tour grade padded gig bag with premium YKK Zippers – Shoulder strap and backpack straps included
  • Made in the U.S.A.

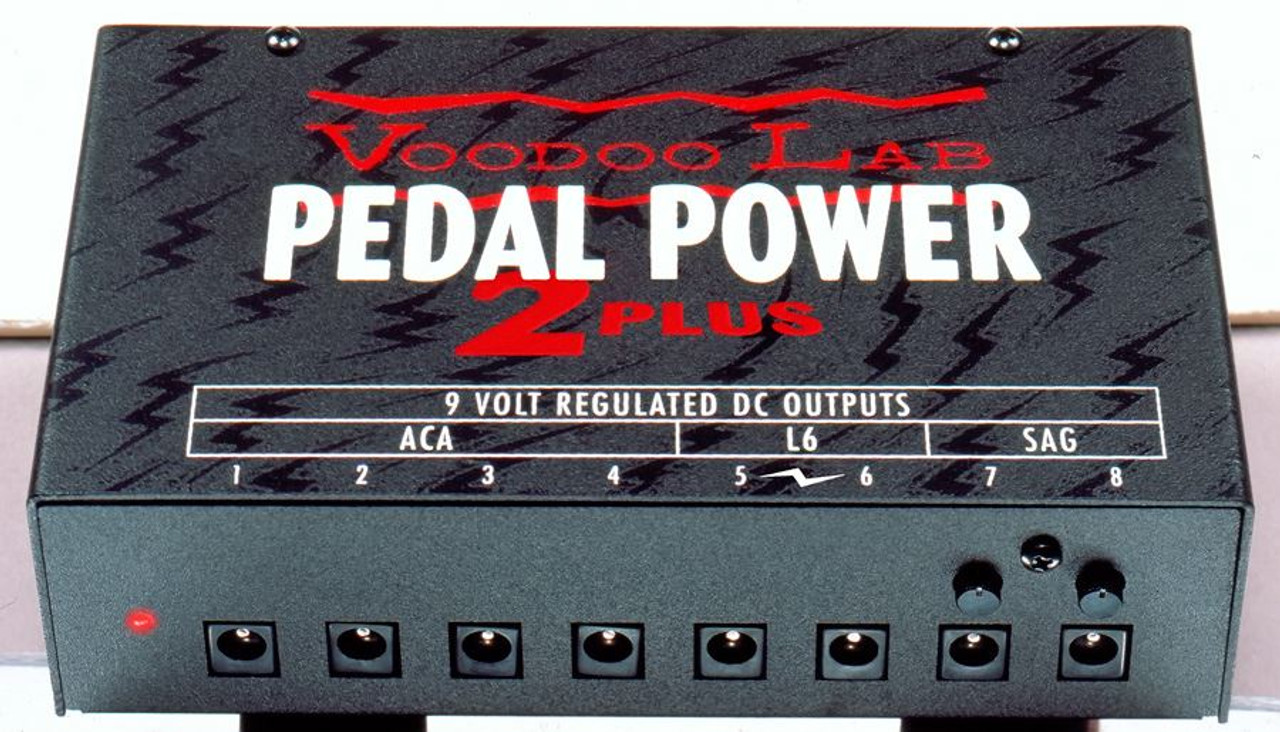

Pedal Power Pedal Power 2 Plus Features

  • 9/12V (x4) – Standard 9V and 12V Boss ACA
    With each one of these four outputs delivering 100mA, you can easily power any 9V battery-operated pedals. Boss pedals that specify the PSA adapter operate at 9V like most other pedals. Boss pedals that require the ACA adapter operate at 12V which can be selected via switches underneath the Pedal Power 2 Plus. Any one of these outputs can be individually selected to run at 9V or 12V.

  • 9V (x2) – High Current 9V and Line 6 Modelers
    These two outputs each deliver 250mA allowing you to run high current draw effects like the Boss DD-20 Giga Delay or Line 6 DL4 Delay Modeler. Via switches underneath the Pedal Power 2 Plus, these two outputs can be separately configured for regulated (Boss Twin Pedals) or unregulated (Line 6 Modelers) power allowing you to run both units if so desired. These outputs can also power any standard 9V effects as well.

  • 9V (x2) – Standard 9V With Battery Sag Control
    These outputs each have an available 100mA of power, but also allow you to SAG the voltage from roughly 4V to 9V. This feature can be enabled via the bottom panel switches. The SAG control is mostly useful for transistor-based fuzz, octavia, and distortion circuits, as most modern opamp designs are minimally affected by variations in supply voltage. We recommend turning SAG off if you’re going to run digital pedals like delay, chorus, and reverb.

  • 18V/24V – Using Custom Cables
    All of the outputs on the Pedal Power 2 Plus (and the original Pedal Power) are completely isolated allowing you to create different voltages. You can run effects like the current MXR Flanger by combining two 9V outputs to create a single 18V supply. By switching two outputs into 12V ACA mode, you can join them together to create a 24V output for powering numerous Electro-Harmonix stompboxes including the Deluxe Memory Man.

Voodoo Lab Dingbat Medium Pedalboard Power Package w/ Pedal Power 2 Plus
SKU: VL-DBMP
UPC: 813140004216
Weight: 16.00 LBS
Width: 10.00
Height: 4.00
Depth: 22.00
Shipping: Calculated at Checkout
