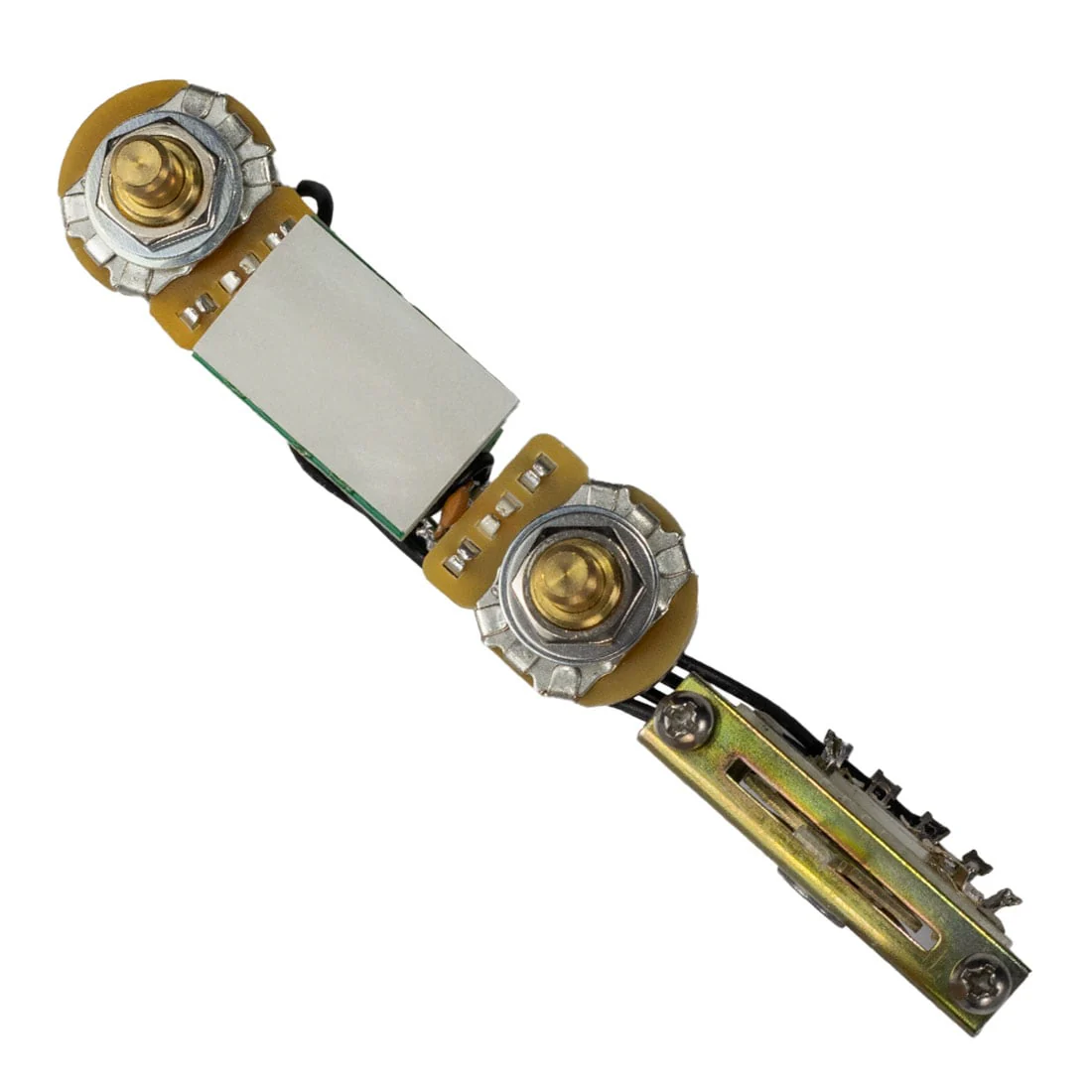

Mojotone Thinline Tele 4 Way Solderless Wiring Harness

$79.95
Current stock: 0 Out of stock
SKU: MJT-TELETHIN4-SL

The Mojotone Thinline Tele 4 Way Solderless Wiring Harness

Upgrading to high quality electronics makes a difference, and solderless makes it easier!

  • Push-in solderless wire connection for quick installation and easy pickup swaps!
  • Vintage quality USA branded components (Switchcraft, Mojotone, Oak Grigsby, and CTS)!
  • Smooth custom taper, CTS industrial potentiometers with solid brass bushings and the tightest tolerances available.
  • Handcrafted and hermetically sealed Mojotone Vitamin T oil-filled tone caps!
  • Handwired point-to-point by Mojotone in the USA!

4-Way Mod Control Functions:

Master Volume
Master Tone
4-Way Switch
4-Way Switch
Position 1: Bridge
Position 2: Bridge and Neck (Parallel) Standard Tele sound.
Position 3: Neck
Position 4: Neck and Bridge (Series) Fat humbucker tone!

Included:

  • (2) CTS 250k vintage taper solid shaft potentiometers
  • (1) Oak Grigsby USA 4-way lever switch (Switch tip sold separately)
  • (1) Switchcraft USA mono input jack
  • (1) Mojotone Vitamin T Oil Filled .047uf capacitor
  • (1) Treble Bleed (Preserves highs on volume control)
  • (1) Detailed wiring diagram and instructions

Note:

Guitars made overseas may require you to enlarge the holes for the larger US spec pots to fit. You will also need to change the metric knobs to inch sized set screw knobs and the switch tip. See related items.

4-way mod requires a separate wire from the neck pickup cover (if it has a cover) for shielding. If you don't have this wire, you can cut the jumper from the cover to the eyelet and solder a separate wire to the cover.

Some control plates need the switch slot to be slightly elongated for the extra travel on the 4-way switch. This can be done with a small file or metal saw blade.

Mojotone Thinline Tele 4 Way Solderless Wiring Harness
UPC: 606034015678
Weight: 0.90 LBS
Width: 6.00
Height: 2.00
Depth: 3.00
Shipping: Calculated at Checkout
