Electro-Harmonix S8 Multi-Output Power Supply

Current stock: 1

The Electro-Harmonix S8 Multi-Output Power Supply. FREE shipping in the USA!

 If you're tired of noise in your signal chain and if you want to be sure your carefully selected pedals are getting consistent current for their best performance, the EHX S8 Multi-Output Power Supply is your go-to solution. It powers up to eight individual effects pedals.


  • Provides one 18V and seven 9V outputs
  • Each output is individually regulated for maximum performance
  • Short circuit protection design for the individual outputs
  • Pedalboard-friendly size, rugged metal chassis
  • Includes eight power cables


  • Power Supply: 12V DC power adapter
  • Outputs: Seven 9V power supply output and one 18V power supply output
  • Current Source: 9V DC outputs maximum current of 250mA per output
  • Current Source: 18V DC output maximum current of 150 mA
  • Dimensions: 93.5mm x 42mm x 36mm (3.7” x 1.7” x 1.4”)
  • Weight: 140g (4.9oz)

Included accessories:

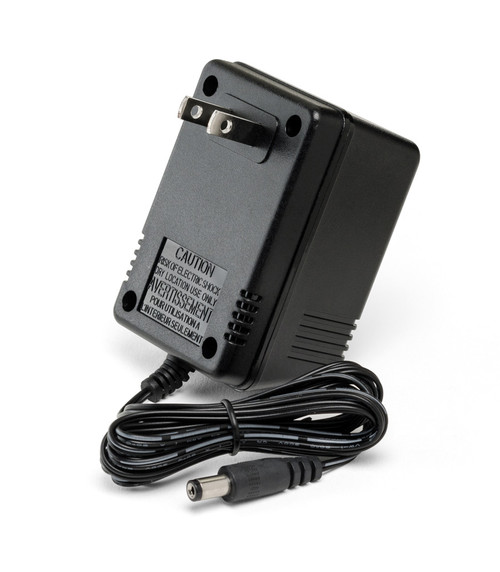

  • One 12VDC/2A Power Adapter
  • Four 460mm DC Power Cables
  • Four 610mm DC Power Cables
  • Pedalboard Mounting Strap (velcro)
  • Owner’s Manual
Electro-Harmonix S8 Multi-Output Power Supply
UPC: 683274032016
Weight: 1.50 LBS
Width: 6.00
Height: 3.00
Depth: 4.00
Shipping: Calculated at Checkout
