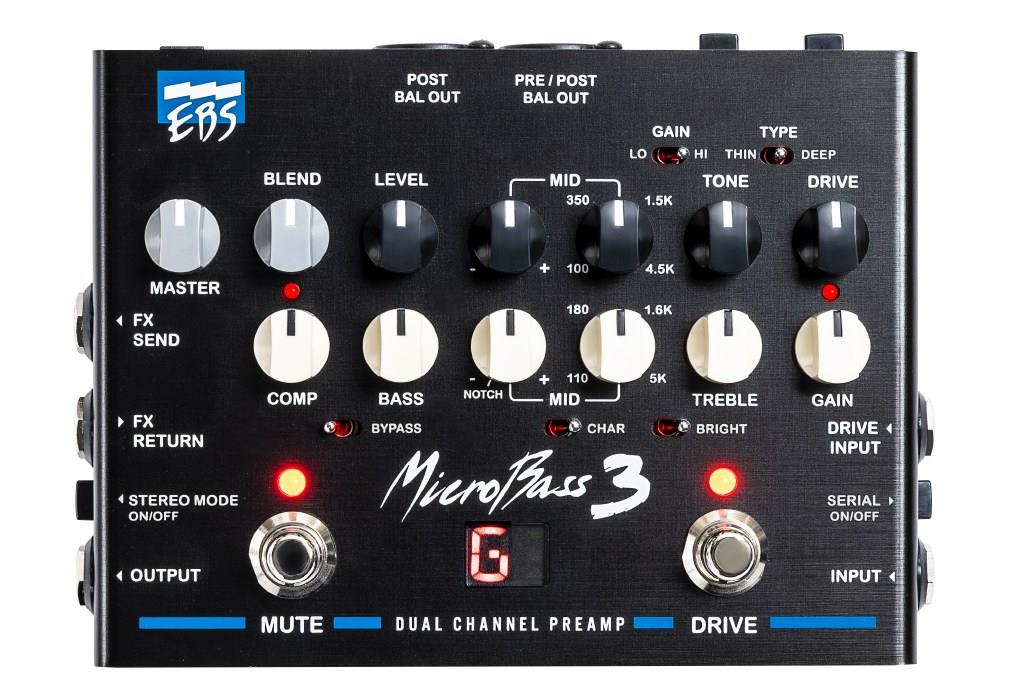

EBS MicroBass 3 Professional Bass Preamp pedal

$349.00
Current stock: 1

The EBS MicroBass 3 Professional Bass Preamp pedal. FREE shipping in the USA!

The EBS MicroBass 3 is a 2-channel preamp, built exclusively with premium components. It is engineered by EBS in Sweden with technologies from the famous HD360 and Fafner II amplifier designs. The preamp operates at a signal level equal to a professional mixing console (+/- 15V) which gives you plenty of headroom. The high signal level makes it suitable to use as a preamp in combination with any type of power amp.

Run the Clean and Drive channels in series or parallel. Use the dual balanced XLR-outputs to tap the signal post and pre EQ at the same time. If you run the Effects loop in stereo mode, the balanced outputs become a Left and Right output instead. With 10 Mohms input impedance, it handles any type of bass – passive, active or with piezo pickups.

The built-in tuner makes it easy to tune between songs without the need of an external device. The MicroBass 3 also carries an onboard compressor, similar to the one found on several EBS amplifiers, and several more features.

The analog EBS MicroBass 3 ensures your sound – every time.

Features

  • 100% analog professional preamp.
  • Dual channels – Clean and Drive.
  • Run in parallel or series.
  • Blend control for the drive.
  • Dual Balanced XLR-out (pre & post EQ or Stereo).
  • Effects loop (mono or stereo).
  • Character and Bright filters (clean channel).
  • HI or LO gain drive engines.
  • Thin or Deep type (drive channel).
  • Tuner, Aux-input, Headphones out.
  • 10 Mohms input impedance (main input).
  • 9V DC, 450 mA required (power supply not included).

Technical Specifications

Clean Channel:

  • Input Impedance
    • Parallel mode  1.5 Mohms // 44 pF
    • Serial mode  10 Mohms // 22 pF
  • Gain:
    • Gain Range min/max -oo/ +30 dB
    • Gain Peak LED +10 dBv
    • Frequency Response  +0 / -3 dB  20 - 20.000 Hz
  • CHARACTER:
    • Filter Type  Shelving High/Low Pass
    • Gain:  Lo  +6 dB @ 80 Hz
      Mid  -2 dB @ 900 Hz
      Hi  +3 dB @ 7.5 kHz
  • BRIGHT:
    • Filter Type  Shelving.  Gain:  +10 dB @ 10 kHz
  • FILTER SECTION:
    • Bass Filter:  Type   12 dB/oct. Shelving. Gain Range  +/- 18 dB @ 60 Hz
    • Middle Filter: Type  Bandpass Filter. Freq Range  50 - 5.000 Hz. Q - Boost  0.5 - 1.3,  Q - Cut  0.5 - >5.  Gain Range +/- 12-15 dB
  • Treble Filter: Type  Shelving. Gain Range +/- 18 dB @ 8 kHz
  • COMP/LIMIT: Comp Gain  0 dB
    • Attenuation max  24 dB
    • Compression Ratio max  3:1
    • Attack (80%) typ  <10 ms
    • Release (80%) typ  100 ms

Drive Channel:

  • INPUT: Input Impedance   1.8 Mohms // 22 pF
  • DRIVE: Gain Range  40 dB
  • ENGINES:
    • Lo: Type   2nd harmonics soft
    • Hi: Type   Symmetrical 2-stage with +18 dB gain
  • TYPEThin/Normal/Deep   Pre Drive EQ
  • FILTER SECTION:
    • Tone Filter:   Type  6 dB/oct.   Low Pass. Frequency Range  700 - 20k Hz
    • Middle Filter:   Type   Bandpass Filter. Frequency Range 100 - 4.500 Hz. Q  1.2,   Gain Range  +/- 15 dB

EFFECTS LOOP:

  • Loop Signal Level nominal  -10 dBv
  • Gain  Unity (1:1)
  • Output Impedance  <100 ohms
  • Input Impedance  >200 kohms // 22 pF

PHONES OUT:

  • Recommended Impedance  32 - 200 ohms

AUX INPUT:

  • Input Impedance  20 kohms
  • Nominal Level  -10 dBv

OUTPUT:

  • Output Impedance  <1 kohms
  • Signal Level  nominal  0 dBv

BALANCED OUTPUTS:

  • Output Level  nominal  -20dBv
  • XLR Connections  1-GND, 2-Hot, 3-Cold
  • Options  Pre/Post EQ, L/R Ch. in stereo mode

AUXILIARY INFO:

  • Power Requirements   Idle  450mA @9V. Max  750mA @9V (with headphones at max output level)

Dimensions (WxDxH):   max  168 x 124 x 53 mm / 6.6” x 4.9” x 2.1”

Weight:  660 g ( 1.5 lbs.)

EBS MicroBass 3 Professional Bass Preamp pedal
SKU: EBS-MB3
UPC: 7332100440107
Weight: 3.00 LBS
Width: 7.00
Height: 3.00
Depth: 8.00
Shipping: Calculated at Checkout
