EBS

EBS HD360 360 Watt Bass Amplifier

$999.00
Current stock: 0 Out of stock

The EBS HD360 360 Watt Bass Amplifier. Free shipping in the USA!

This 'High Definition' bass head is completely based on Solid State technique. The HD heads have become favorites among studio session players, offering an exceptionally good and thought-out EQ that has been tuned-in carefully to cover all the frequency ranges that you need to optimize your tone.

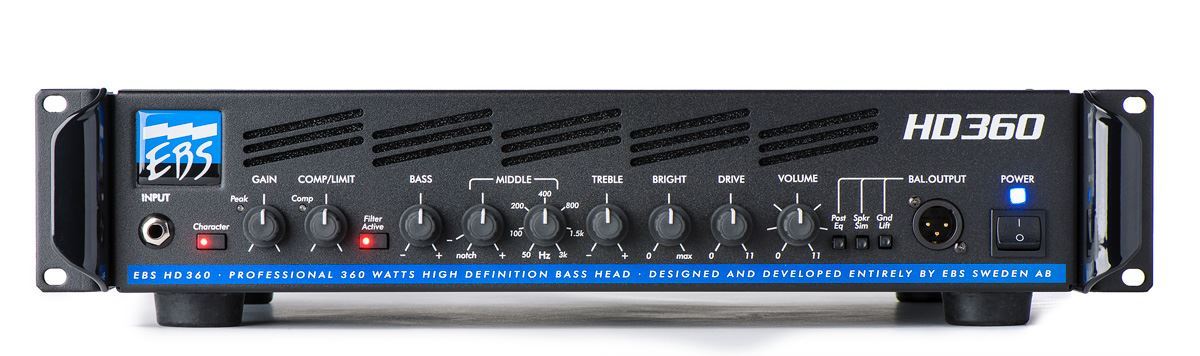

The basic layout of the control panel (from left to right) feature a Character filter, which is a quick fix to a modern type sound by offering a mid-scooped overall tone. The input Gain control set the signal level into the amp from your instrument. The Filter Active button activates/bypasses the EQ filters, the shelving Bass filter followed by the advanced Middle filter where you pick the frequency range you’d like to adjust with the right control and cut or boost in that range with the left control.
Don’t forget the clever "Notch" function. When the Cut/Boost control is set to "Notch" you can identify and scoop out frequencies causing unwanted feedback with the Frequency control. It is very useful in rumbling venues that may pick up certain frequencies, or when you get feedback from an upright bass.
Next is the shelving Treble filter and then the unique Bright filter, which is almost like a volume control for the cabinet’s tweeter. When turned up it opens up the sound and makes the tone huge and alive.
The Drive offers that extra grit that makes the amp growl as much as you want. From just a smooth boost to growling distortion.

The input jack has a special feature since, if used with a stereo cable, it offers 9V DC Phantom Power output, that can be used to power a single 9V DC EBS pedal or an active bass.

Back panel. On the back panel you'll find the Effects Loop, featuring a Mix level control that lets you blend in all effects hooked up through the loop with your sound, from zero to a hundred percent. Effect Return also offers the same Phantom Power function that you find on the Input jack at the front. There is a Tuner output, for connecting a tuner rack unit easily. You have a Line out, in case you need the power from another amp to drive a second pair of cabinets, and finally the Filter Remote Inputs to connect the RM-4 footswitch that lets you switch on and off Character, Filter Bypass, Drive and Mute from front of stage.




Specs

  • Input Impedance 2 Mohms
  • Frequency Response 20 - 20.000 Hz
  • Maximum Compression Ratio (Compressor) 3:1
  • Tone Controls
    Bass +/-15 dB @ 100 Hz
    Middle +/- 12dB @ 50 - 3.000 Hz, Q=0.5
    Treble +/- 15 dB @ 4 kHz
    Bright -0/+20 dB @ 10 kHz
  • Drive Gain Range 0 - 30 dB
  • Drive Type Solid State
  • Speaker impedance 2 - 8 ohms
  • Continuous Output Power
    Dynamic Output Power 360 W RMS @ 2 ohms,
    Continuous Output Power 300 W RMS
  • Dimensions (W x D x H) 19" x 13" x 2U (48cm x 33cm x 13cm)
  • Weight 9 kg / 20 lbs

Features

  • Type: 100% Solid State
  • Built-in Compressor/Limiter
  • Extremely Powerful 4-band EQ
  • Serial and Parallel Effects loop with mix-level control.
  • 9 volt Phantom Power System™
  • Character filter.
  • Filter Remote Inputs.
  • Balanced XLR-Out with optional speaker simulator and ground lift.
  • Line and Tuner Out
  • Output Power: 360 W RMS @ 2 ohms

Download owners manual here
