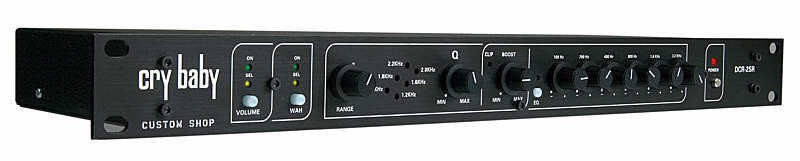

Dunlop Custom Shop Crybaby Rack Wah Module DCR-2SR

$599.99
Current stock: 1

The Dunlop Custom Shop Crybaby Rack Wah Module. FREE shipping anywhere in the USA!

Due to dealer agreements, we're unable to ship this item outside of the USA. Please click here for more details.

The Dunlop Custom Shop Rack Wah gives more control over your wah tone than any wah pedal in the world. The 6-position switch lets you select the frequency, sweep range, and the variable Q control which determines the shape of the wah effect. The 6-band EQ allows even more precise fine-tuning. The adjustable boost (up to +/- 10dB) make the Rack Wah even more flexible. You can connect up to six pedals and place them anywhere onstage. The two continuous outputs (Through, Wet/Dry) give you optional routing options for even more versatility.

And, as an added bonus, this product has a separate volume section. This is a volume control that can be remotely varied by using a standard 250K volume pedal located up to 500 feet from the rack without having the audio signal ever leaving the rack. This keeps the signal path very short and minimizes its exposure to environmental noise. The volume section is entirely independent of the wah section so it can be placed electrically anywhere in the effects chain.

Included with the DCR-2SR: One DCR-1FC foot controller, one ECB-007 24-volt AC adapter, screws and washers for rack mounting and the cable to connect the DCR-1FC to the DCR-2SR.

Power: Dunlop ECB-007 24-volt AC Adapter (included)

Controls:

  • 6-position swtich selects frequency center of effect
  • 6-band graphic EQ allows tonal fine-tuning
  • Six controller inputs for multiple remote access (requires DCR-1FC foot controller)
  • Effect switching is handled with a hard wire bypass relay that complete
  • removes all the input circuitry from the signal when the effect is bypassed or turned off.
  • Two continuous outputs for versatility: Through and wet/dry (hardwire bypassed).
  • Volume control incorporated pre-amp boost with up to +10dB additional gain.
  • A remote input that will switch the rack into bypass mode with a simple switch closure.

Download Product Manual here

Dunlop Custom Shop Crybaby Rack Wah Module DCR-2SR
SKU: JD-DCR2SR
UPC: 710137024298
Availability: International shipping restricted
Weight: 12.50 LBS
Width: 16.00
Height: 8.00
Depth: 22.00
Shipping: Calculated at Checkout
Warranty: DCR-2SR
