Product Description

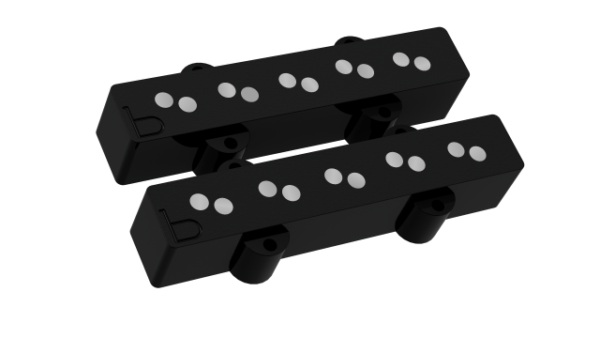

Bartolini 5-String B-Axis J55J-19-L/S 5-String J-Bass pickup set
For the Fender American Standard or Deluxe V J bass
FREE shipping anywhere in the USA!
Punchy and defined voice with great articulation and harmonic content for your Fender American Standard or Deluxe V J-Bass or American Fit with the original bridge with 19mm saddle spacing.
B-axis Jazz pickups series feature a new and unique fully encapsulated Alnico V exposed pole design, and yet they are still fully shielded like all our enclosed pickups. The cable is shielded as well. b-axis Jazz bass pickups are dual-inline hum-cancelling design for use in professional venues and studios. They are sweat-proof and won’t make nasty noises if you touch them.
b-axis pickups are super punchy and bright, but also warm. They have outstanding articulation, attack, and harmonic response. Musicians who play jazz, rock, country, gospel, and hip-hop are already finding their voice in b-axis pickups.
Available in balanced bridge and neck versions.
Technical Details
Neck bass coil North, Neck treble coil South, Bridge bass coil South, and Bridge treble coil North

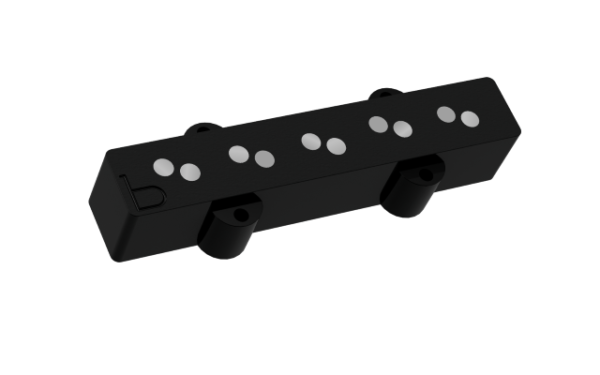

B-axis J55J-S-19 - Neck
- DC Resistance: ~11.2KΩ
- Resonant Frequency: ~4.9KHz
- Sensing Width: 2.74" [69.7mm] B Center to G Center
B-axis J55J-L-19 - Bridge
- DC Resistance: ~12.4KΩ
- Resonant Frequency: ~4.9KHz
- Sensing Width: 2.92" [74.1mm] B Center to G Center

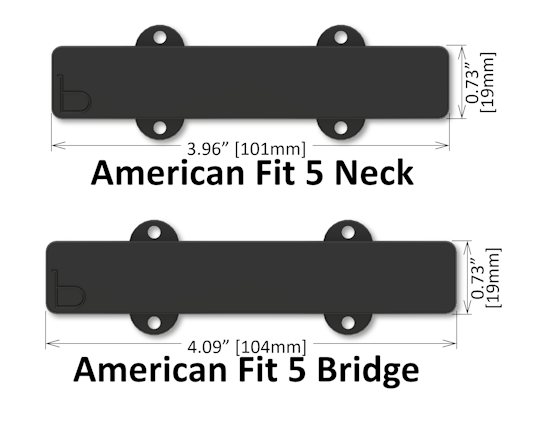

Shape Details
American Fit Short J-Bass (-S)
- 3.96" [101mm] Long
- 0.73" [19mm] Wide,
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
American Fit Long J-Bass (-L and -LN)
- 4.09" [104mm] Long
- 0.73" [19mm] Wide
- 0.83" [21.1mm] Thick + 0.11" [2.8mm] Cable
- 4 Standard J Pickup Mounting ears for your #3 or #4 screws
